80-2000t/h Capacity:
≤1300mm Input size:

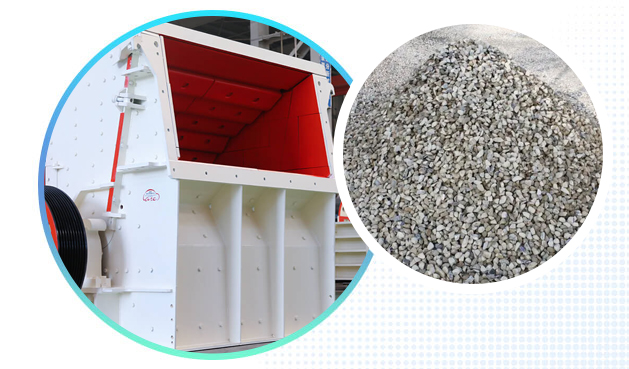

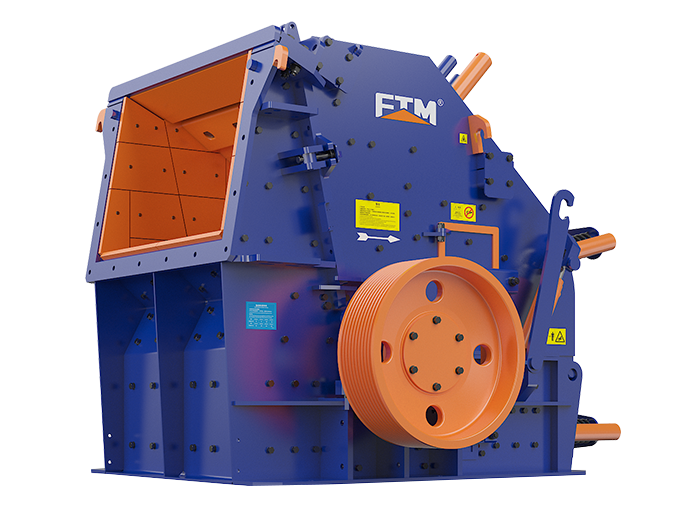

The CI series impact crusher meets the needs of customers for high-yield, low-cost, energy-saving and environmentally friendly products. A large number of new high wear-resistant materials are used, and the performance and processing capacity of the equipment are greatly improved. Lightweight frame, high-precision spindle, high-strength counter-attack and high-wearing plate hammer can handle a variety of crushing modes such as coarse, medium and fine crushing of ore and rock.
The rugged heavy-duty rotor structure of the CI series impact crusher increases equipment throughput and crushing ratio. The high quality welded construction ensures that the machine can withstand the most impact and achieve good crushing results. The CI1213 impact crusher is a hot sale model of the CI series. Its production capacity is 100-280t/h, the power is 200kw, the rotor specification is φ1200*1300mm, and the feed size can meet the 300mm feeding material.
With ship type hammer and reliable locking structure, the crusher has good impact resistance, anti-wear performance and maintains stable discharge particle size. Optional third counter-attack frame can make the product shape more excellent.
012, A large number of new high wear-resistant materials are used to reduce the wear of wear parts, extend the replacement cycle and save costs.
02Hydraulically opening and counter-attack plate and plate hammer clearance hydraulic auxiliary adjustment reduce labor intensity and downtime.
03The equipment is equipped with a variety of safety locking devices to improve safety performance and reduce labor intensity.
04
Our CI Series Impact Crusher has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you. Get Quote
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
| CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
| CI1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
| CI1321 | 300 | 315 | 130-430 | 2955×3285×2585 |
| CI1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
| Cl1524 | 350 | 2×315 | 240-700 | 3450×3925×2855 |
| Cl1630 | 400 | 710-800 | 300-900 | 3693×4520×3173 |
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
| CI1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
| CI1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
| CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
| Model | Maximum Feeding Size (mm) | Capacity(t/h) |
| CI1110 | 250 | 60-210 |
| CI1213 | 300 | 80-280 |
| CI1316 | 300 | 100-350 |
| CI1321 | 300 | 130-430 |
| CI1521 | 350 | 200-600 |
| Cl1524 | 350 | 240-700 |
| Cl1630 | 400 | 300-900 |
| Model | Maximum Feeding Size (mm) | Capacity(t/h) |
| CI1313 | 600 | 100-480 |
| CI1415 | 600 | 120-600 |
| CI1620 | 800 | 220-900 |
| CI2023 | 800 | 200-2000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.
Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.
Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
