Brief Introduction

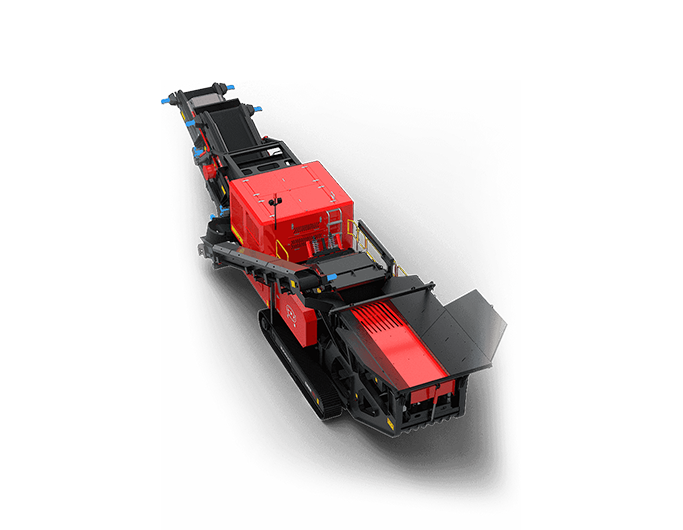

The crawler-type mobile crushing screening station is a mobile crushing and screening equipment developed by our company by introducing the technology of well-known mining machinery companies and combining with the actual situation in China. The machine uses a hydraulic system to drive the crawler, so as to achieve smooth running, and can adapt to a variety of complex job site conditions. It is widely used in mineral mining, stone mining highways (railways) and bridges, urban construction waste disposal and many other fields.

Brief Introduction

Working Principle

The material can be evenly transported to the jaw crusher through the feeder. After the primary crushing, the material is sent to the impact crusher through the conveyor for secondary crushing. After crushing, it is output and sent to the vibrating screen. The materials that the conveyor output does not meet the requirements are returned to be crushed again. The whole processing process is a complete production line, which can realize the cyclic crushing of materials and meet the production requirements of customers.

Contact Us for Video Tour of the Factory

Advantages

Service Guarantees

Technical Data

Series Standard Model On Board Equipment On Board Equipment Processing Capacity (t/h) Transport Dimensions (mm)
WOTETRACK MOBILE JAW CRUSHING STATION WT96 HVF9538 CJ96 70-150 13500×2800×3500
WT106 HVF1140 CJ106 90-250 15100×2800×3500
WT120 HVF1242 CJ120 110-350 16000×3100×3800
WOTETRACK MOBILE IMPACT CRUSHING STATION WT1110S HVF9538 C11110M 60-150 16500×3400×3600
WT1213S HVF1242 Cl1213M 80-200 17000×3460×3700
WT1316 HVF1242 Cl1316 100-300 15000×3300×3800
WOTETRACK MOBILE CONE CRUSHING STATION WT200S HPM200 80-150 16400×3300×3700
WT300S HPM300 100-200 17800×3400×370C
WT160S SC160 70-200 17000×3300×3700
WT250 SC250 100-250 15500×3300×3800
WOTETRACK MOBILE IMPACT SAND MAKING STATION WT0818 HV10818 70-150 15000×3100×3700
WT0926 HVI0926 85-200 16000×3300×3800
WOTETRACK MOBILE SCREENING STATION ST722 ZS1548H 60-400 15700×3180×3500
ST833 3YK1560H 60-300 15500×3100×3500
ST833S 3YK1560H 60-300 17500×3100×3500
ST1083 3YK1860H 80-400 16500×3400×3650
ST1083S 3YK1860H 80-400 18500×3400×3650
ST6203 THS2060 100-500 18500×3260×3600

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
