5.6–6250 t/d Capacity:
1.8–204.6 t Total weight:

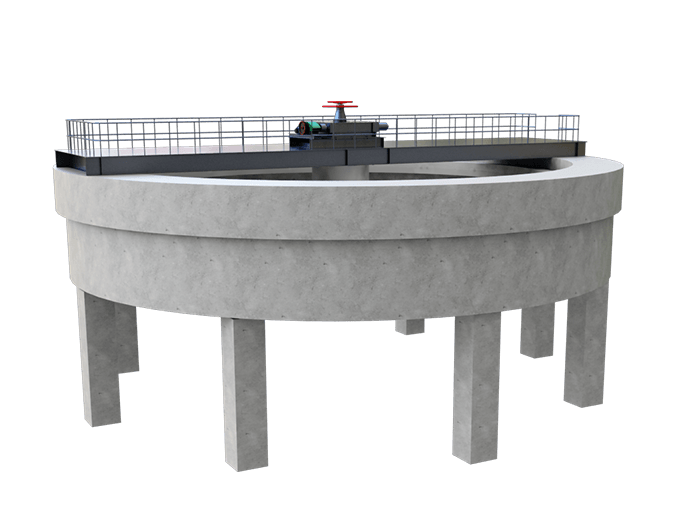

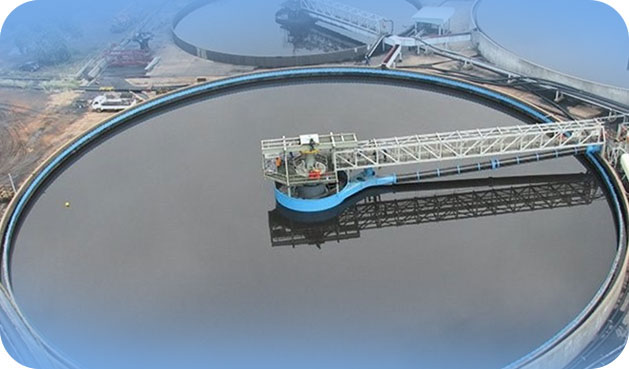

The ore thickener tank is a continuous working concentrated and clarified multi-function equipment, mainly used for the concentration and clarification of concentrate and tailings slurry in wet beneficiation and coal preparation. It is highly efficient, energy-saving and eco-friendly.

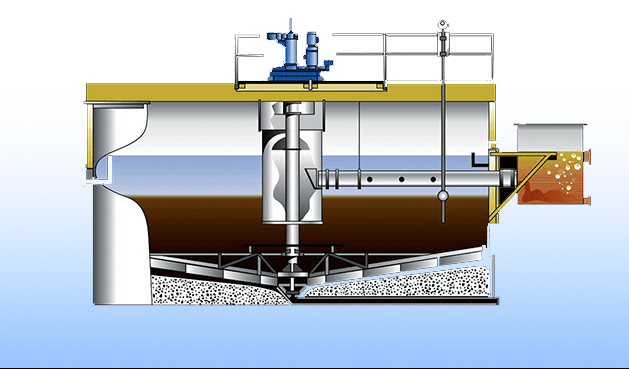

In the industrial beneficiation process, the wet concentrate sorted by the flotation machine or the magnetic separator is transported to the concentrate pool for concentration and sedimentation. The ore thickener tank is mainly composed of a circular concentrating tank and a squeegee scraper. The ore thickener tank is not simply a sedimentation device, but a new type of dewatering device that combines the filtration characteristics of the mud layer.
The ore thickener tank is simple in structure and equipped with complete self-control facilities for automated production.
01The sedimentation speed is fast and the equipment has inclined plates, increasing the settlement area and the processing capacity can be increased by 30-50%.
02Concentrate dewatering can ensure the quality of concentrate, improve the utilization of concentrate, reduce transportation costs and save water resources.
03
Our Ore Thickener Tank has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you. Get Quote
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Specification | Concentration pond (m) | Deposit square(m2) | Harrow part | Motor | Processing capacity (t/d) | |||||
| Model | Specification | Inner diameter | Depth | Pond degree | Method | Height (m) | Rotation time (min/r) | Driving | Lifting | |
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Manual | ---- | 3.7 | Y90S-4 1.1KW | ---- | 62 |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Auto | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Manual | 0.25 | 5.28 | JTC752A-44 5.2KW | ---- | 250 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Auto | 0.4 | 10.4J | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Auto | 0.4 | 10.4 | Y100L1-4 5.2KW | Y112M-6 2.2KW | 960 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y672A-44 5.2KW | YCJ132-S 1.5KW | ---- |
| NZS-45 | Φ45m | 45 | 4.633 | 1590 | Manual | ---- | 20 | Y672A-44 5.2KW | YCJ160-S 2.2KW | 515 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW | ---- | 390 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 |
| NQ-30 | Φ30m | 30 | 3.6 | 707 | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Auto | ---- | 19.3 | Y160L-6 11KW | ---- | 2400 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6 15kw | ---- | 6250 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 | ---- | ---- | 43 | Y180L-6 15KW | ---- | 3030 |
| Specification | Deposit square(m2) | Processing capacity (t/d) | |
| Model | Specification | Pond degree | |
| NZS-1 | Φ1.8m | 2.54 | 5.6 |
| NZS-3 | Φ3.6m | 10.2 | 22.4 |
| NZS-6 | Φ6m | 28.3 | 62 |
| NZSF-6 | Φ6m | 28.3 | 62 |
| NZ-9 | Φ9m | 63.6 | 140 |
| NZS-9 | Φ9m | 63.6 | 140 |
| NZS-12 | Φ12m | 113 | 250 |
| NZ-15 | Φ15m | 176 | 350 |
| NZ-20 | Φ20m | 314 | 960 |
| NZ-30 | Φ30m | 707 | ---- |
| NZS-45 | Φ45m | 1590 | 515 |
| NT-15 | Φ15m | 177 | 390 |
| NQ-18 | Φ18m | 255 | 560 |
| NQ-24 | Φ24m | 452 | 1000 |
| NQ-30 | Φ30m | 707 | 1570 |
| NJ-38 | Φ38m | 1134 | 1600 |
| NT-45 | Φ45m | 1590 | 2400 |
| NTJ-53 | Φ53m | 2202 | 6250 |
| NT-100 | Φ100m | 7846 | 3030 |
