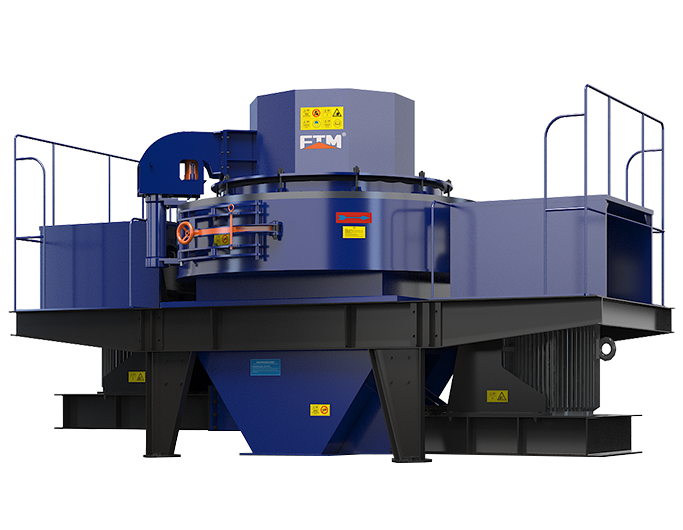

VSI Crusher

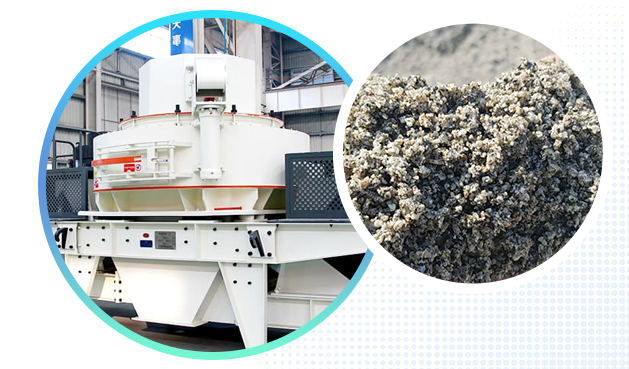

Brief Introduction

VSI crusher, also known as vertical shaft impact crusher, is advanced equipment specially used for artificial sand making and stone shaping. It adopts the principle and technology of “rock on rock” crushing, which can not only realize the fine crushing of stone materials, but also complete the sand making products. And it has a shaping function, usually with a jaw crusher, a sand washing machine, a vibrating screen, a conveyor and other equipment to form a complete sand production line, which plays an important role in improving the grade of the finished stone.

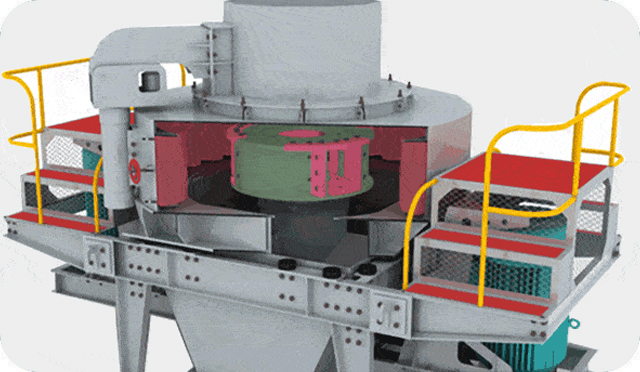

Working Principle

The stone is hit, accelerated, impacted, rebounded and rubbed in the VSI crusher, so that the ore is broken along the fragile surface such as joints and until the material specifications are set, so the VSI crusher is an advanced, high-energy and low-cost sand making equipment. The crushing products have uniform particle size, natural grain shape and the crusher can crush various ores into sand of different specifications. The product has many cubes and performs better in concrete, asphalt and base mixes.

Advantages

1.The easy-grinding parts are made of high-quality and high-wear alloy materials, and the service lifespan is 6~8 times higher than that of high-manganese steel. It is equipped with special lubrication device, which is easy to fill and prolongs the service life of equipment and its components.
01
2.Compared with the traditional equipment under the same power, vsi crusher has increased the output by more than 20%, and the sand making efficiency has increased by more than 35%. Under the same capacity, the power consumption can be reduced by 10~40%.
02
3.During work, the parameters of the vsi crusher can be adjusted to fix the size of the discharge port. The built-in screening device does not produce over-grinding products and unqualified products do not pass into the finished product.
03
4.Hydraulic opening device, easy to replace wearing parts, easy to maintain.
04

Cases and Price

Our VSI Crusher has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you. Get Quote

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Model		VSI 7611	VSI 8518	VSI 9526	VSI 1140	VSI 1145	VSI 1150
Capacity (t/h)	Feed both at center and sides	80-180	140-260	200-380	300-520	350-610	360-650
Capacity (t/h)	Feed at center	40-90	70-130	100-190	160-260	180-355	190-365
Max.feeding size （mm）	Soft material	35	40	45	50	50	50
Max.feeding size （mm）	Hard material	30	35	40	40	45	45
Rotation speed（r/min）		1700-1890	1520-1690	1360-1510	1150-1300	1150-1300	1150-1300
Motor power（kw）		4P 110	4P 180	4P 264	4P 400	4P 440	4P 500
Overall dimension（L×W×H）（mm）		4100×2250×2300	4160×2360×2500	4540×2500×2830	5500×2750×3100	5500×2750×3100	5500×2750×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Capacity(t/h)
Model	Feed both at center and sides	Feed at center
VSI 7611	80-180	40-90
VSI 8518	140-260	70-130
VSI 9526	200-380	100-190
VSI 1140	300-520	160-260
VSI 1145	350-610	180-355
VSI 1150	360-650	190-365
